Business On-board Signalling System
MMI(Man and Machine Interface)・ADU(Aspect Display Unit)

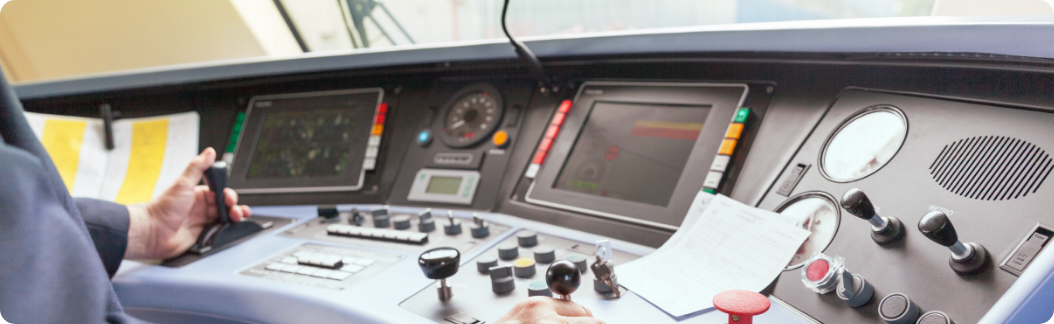

The Aspect Display Unit(ADU) and Man and Machine Interface(MMI) is a device that displays driving information such as current speed and the speed limit of the vehicle is displayed and notifies the driver of the audible warning according to the situation depending on the information transmitted from on-board Rack(ATS, ATC, ATP, ATO, etc.) installed in the driver’s compartment, thereby helping the driver drive safely.
Aspect Display Unit
differentiation
-
01.Stable operation configuration using Redundancy System design
If the MMI device's screen display malfunctions or input (touchscreen function) malfunctions occur during operation of a railway vehicle, normal operation is impossible. Therefore, a redundant system configuration has been applied to ensure safe operation of the vehicle even in the event of a malfunction or failure.
-
02.Application of 5-wire type touchscreen with improved reliability
The sensor life of the 5-wire resistive touchscreen is longer than that of the 4-wire type, and its durability and safety are far superior. In addition, its high sensitivity allows for accurate and efficient contact calculation.
-
03.Event log storage and log analysis using self-developed analysis program
Communication data with signal devices is stored as a log at regular intervals, and important information is stored separately for a longer period when an event occurs. You can easily check the constant log and event log with the signal device through USB download using the self-developed program.
Major Products
- Automatic screen brightness control, Self Test function
- S/W upgrade using USB and download log information function
-
Aspect Display Unit
(Touch Type) -
Aspect Display Unit
(Touch Type) -
Aspect Display Unit
(Touch Type) -
Aspect Display Unit
(LED Type) -
Aspect Display Unit
(Button type) -
MMI Tester
A Type -
MMI Tester
C Type
Application
-
Domestic- KORAIL Conventional Train / EMU / High-speed Train / (Diesel) Electric Locomotives
- Seoul Metro EMU
- Busan Metro EMU
-
Overseas- Egypt Cairo Line 1 180-cars , Cairo Line 2 48-cars
- Philippine Manila EMU 108-cars
- Indonesia Jakarta LRT 16-cars
