Business On-board Signalling System
Automatic Inspection System
Railway vehicle on-board signaling system integrated tester is the comprehensive test system to inspect significant signal system’s performance and its function installed in the train. Integrated tester composed of a measurement device for precision diagnosis, inspect manually and automatically according to the requirements of the railway vehicle and is necessary for preventive maintenance and maintenance work.

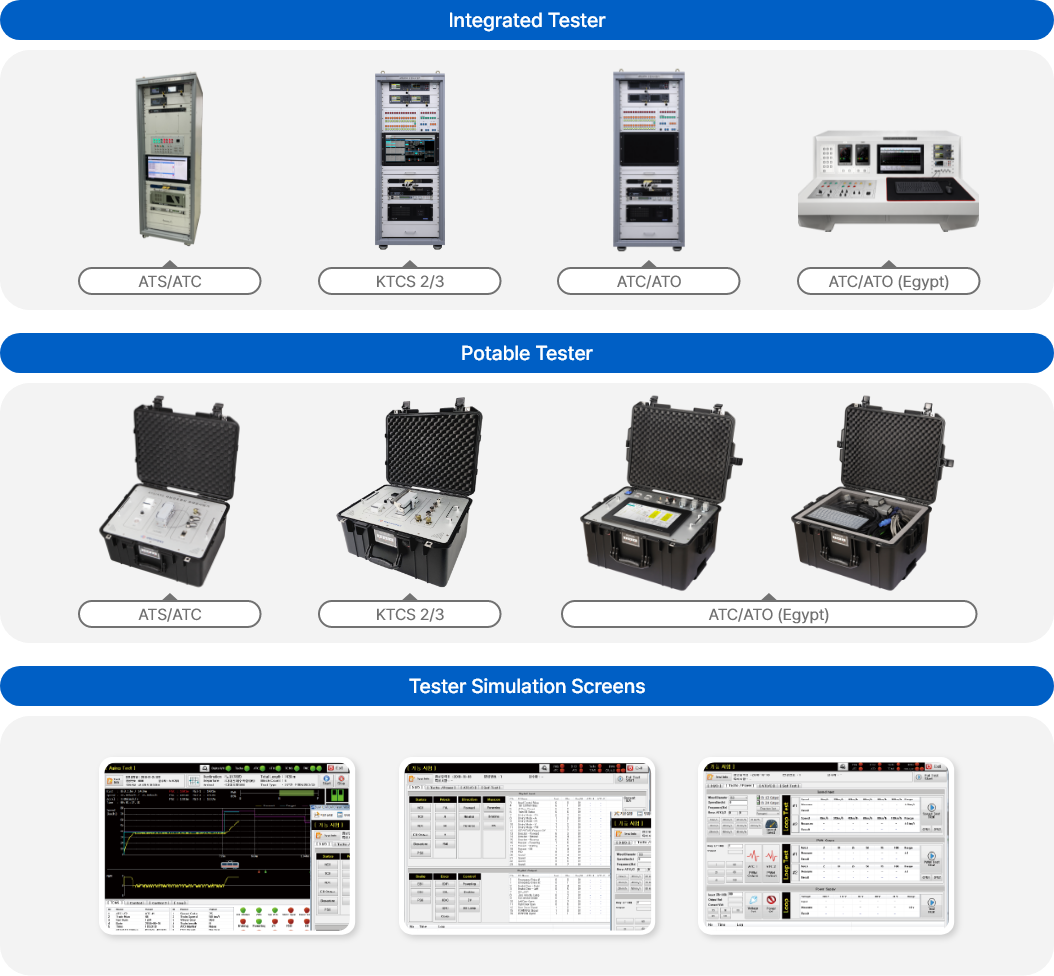

Major Products
-
Integrated Tester
The tester components consist of the tester main body(measurement instrument), simulation wayside coil, antenna, antenna junction box, simulation loop and cable etc.By approving frequency signal, unit test, functional test, scenario test are possible.
-
Portable Tester
The tester components consist of a simulator(laptop), a tester main body, a simulated wayside station, a simulated loop, cables, etc.By approving frequency signal, unit test, functional test, scenario test are possible.
Major Function
-
01
Progress Test Check
The state and results on the running test items can be checked on the monitor and the operator display device.
-
02
Test Result Check
All tests can be performed automatically with one-click, and test results can be stored, viewed and printed in a database.
-
03
Tester Configuration
Each device in the tester consists of the same device as the system installed in the actual train and provides a perfect operating environment.
-
04
Basic Operation Test
It is possible for in,output check, driving mode check, check of speed and simulation signal, train control and monitoring system/MMI communication check test, diagnosis, and etc..
-
05
Scenario Test
Scenario test, train protection function test, and the simulated driving test can be performed for each signal.
Application
-
Domestic- KORAIL Conventional Train / EMU / High-speed Train / Motor car
- Seoul Metro EMU
- Busan Metro EMU
-
Overseas- Egypt Cairo ATC On-board Signaling System
- Philippine Manila ATP On-board Signaling System
- Indonesia Jakarta ATS On-board Signaling System
