Business Fire Detection System

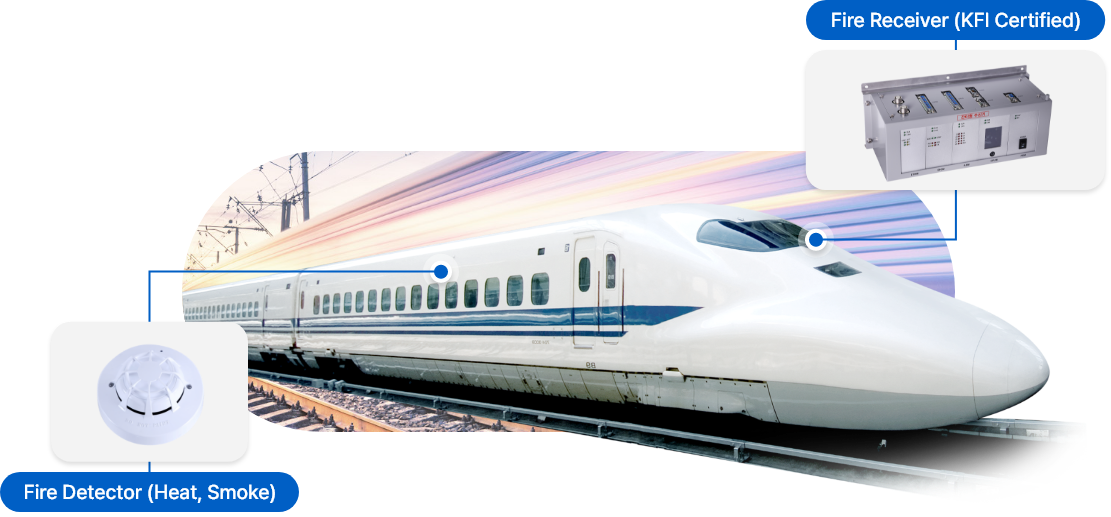

Fire Detection System is the device that promptly detects smoke and heat in case of on fire in train and transmits it to Train Control and Monitoring System. It can prevent the fire in advance and secure the passenger’s safety. As a formal supplier, CSIN Tech, being proud of the biggest contract in the domestic market, is being successfully operated in the domestic and overseas market. FDS consists of Fire Receiver and Fire Detector.
Major Products
-
Fire Receiver
By receiving the information with the mode of an analog detector and communications, displays fire, failure, etc and state information on LCD. Fire receiver composition consists of power, CPU, in/output, analog detector, a communication module, and the communication module can be changed by communication structure.
Maximum number of detector that can be connected: 126 -

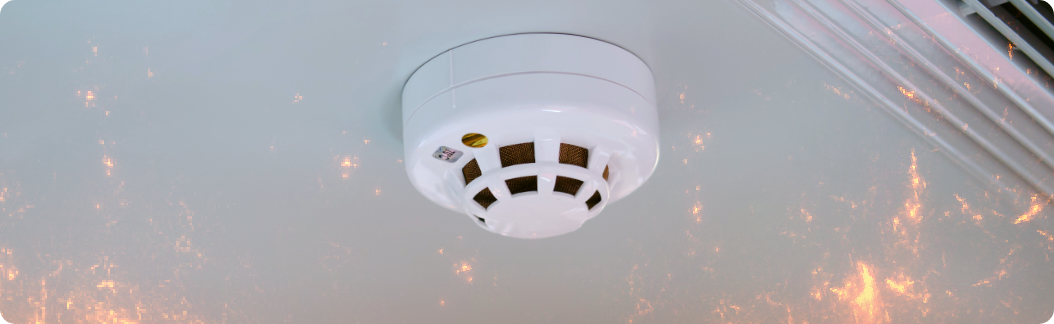

Fire Detector
Analog heat and smoke detectors detect smoke by dispersing light energy according to the smoke characteristics and density ratio when smoke enters, and have the advantage of being able to detect quickly and not being affected by wind or air pressure changes. Acquire domestic type-approval and KC Certificate. -
Fire smoke detector(Duct type)
Duct type smoke detector is the device typically used for the vehicle that detects combined smoke in HVAC duct.
Major Function
-
01
Fire Detection
It transmits the fire signal immediately to the Train Control and Monitoring System when to detect heat and smoke exceeding the standard. With the application of analog accumulation and linking functions, the malfunction of fire detector is minimized.
-
02
Fault Detection
In case of fire detector’s detection function abnormality or abnormal operation of fire detection receiver, it outputs the failure signal.
-
03
Information Record
The operation history and Trace data of the Fire Detection System are saved, and supports condition-based maintenance (CBM), making it easy to system check and maintain.
-
04
Detection format
It is separated heat, smoke, and heat & smoke(general/analog type).
-
05
Communication Format
It is compatible with Ethernet, RS-485, and MVB communication mode.
-
06
Domestic Type-Approval
The product for the domestic market is supplied only confined to the products acquiring approval from KFI and pass through the tests.
-
07
SIL2 Certificate
We have been recognized worldwide for our technology and excellence by obtaining Safety Integrity Level 2 certification.
-
08
User Interface
It applied Touch Screen. It provides S/W upgrade and log information download functions through PC program linkage.
Application
-
Domestic- KORAIL Conventional Train / EMU / High-speed Train / (Diesel) Electric Locomotives
- Seoul Metro EMU
- Busan Metro EMU / LRT
- Supply to multiple projects including Trams and LRT
-
Overseas- Hong Kong SCL
- Kazakhstan Almaty
- India RS10
- Canada RAV
- Taiwan TRA
- Tunisia SNCFT
- Egypt Cairo Line 2 and 3
- Turkey Izmir / TCDD / Marmarai
- USA SEPTA / SILVERLINER V
